chocolate ball mill machine

Short Description:

1.Two types of chocolate ball mill machine: Batch type ball mill and Continuous type ball mill.

2.Capacity range of chocolate ball mill: 2kg – 1000kg per batch(hour), can be customized

3.Food grade of SS304

4.Optional voltage, customized logo

5.Provide engineers with installation services abroad

6.Provide qualified test reports before shipment

7.Lifetime warranty service, providing free accessories (non human damage within one year)


Product Detail

Product Tags

Chocolate Ball Milling Machine is used for ball grinding and milling chocolate pastes. Through collision and friction between the steel balls and the chocolate pastes inside the machine cylinder, the chocolate pastes will continuously improve its fineness till it reaches the required rate. This machine has advantages of high production output, low energy cost, even fineness and etc.

Batch type chocolate ball mill machine：

High efficiency(the refining time is much less than traditional chocolate conche, the production capacity is more than 10 times of the traditional conche)

Including smaller capacity and bigger capacity for smaller and bigger chocolate factory, stable working and save ball cost design

SUS304, food grade

Electrical components: Omron brand and Siemens brand

Can choose magnetic filter, can put different size of ball on base of customer request, can put customer’s logo outside machine.

Can set grinding time, machine will control temperature automatically and stop grinding automatically.

Technical Data:

Model BT12 BT50 BM150 BM300 BM500 BM1000
Capacity 12L 50L 150L 300L 500L 1000L
Milling time 1-2H 1-2H 3-4H 3-4H 4-6H 5-8H
Motor power 0.75KW 7.5KW 11KW 15KW 30KW 32KW
Electric heating power 3KW 6KW 6KW 6KW 9KW 12KW
Diameter of grinding ball 12mm 12mm 12mm 12mm 12mm 12mm
Weight of grinding ball160 20KG 160KG 200KG 300KG 400KG 500KG
Output fineness 18-25μm 18-25μm 18-25μm 18-25μm 18-25μm 18-25μm
Dimension(mm) 700*610*750mm 750*800*1820mm 1000*1100*1900mm 1400*1200*2000mm 1400*1500*2350mm 1680*1680*2250mm
G.weight 80KG 310KG 1200KG 1600KG 1900KG 2500KG

Why you choose this batch type chocolate ball mill?

If you want to get not too big capacity, such as 2kg-1000kg per batch or every two hours, this batch type chocolate ball mill is your best choice. You don’t need use chocolate conche, you just need put all raw material into this chocolate ball mill, and then it will mix all material and then make grinding in the same time. Our batch type ball mill advantage is that our machine design can make sure that machine work with stable condition without any problem and it can get better taste chocolate.

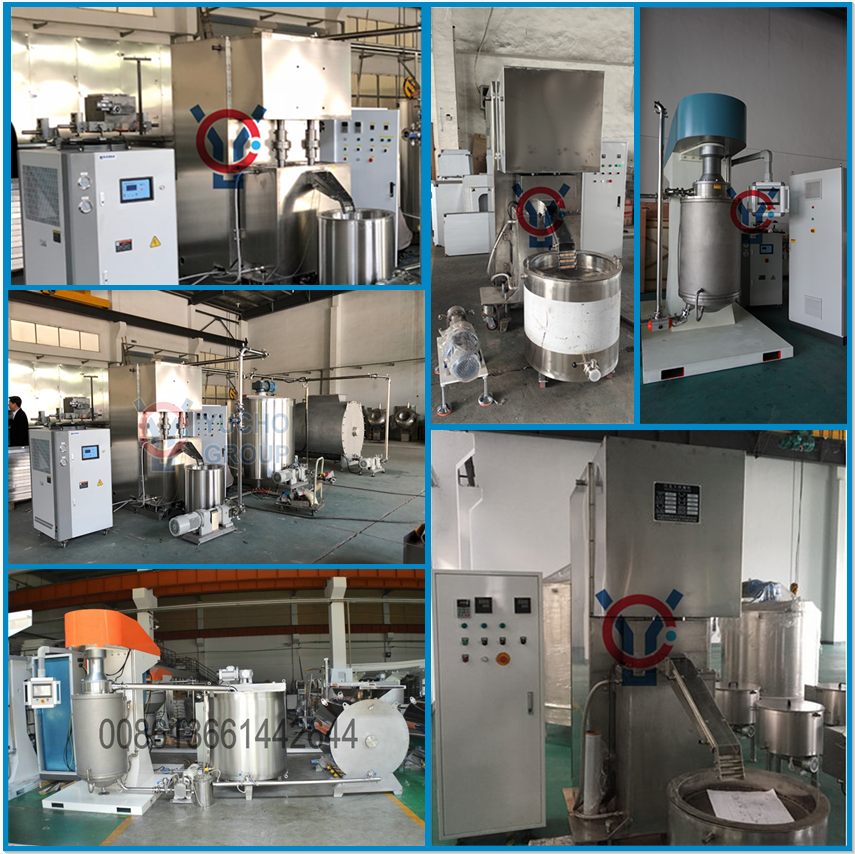

Continuous type chocolate ball mill:

This machine is continuous type chocolate ball mill, it should be used along with chocolate refiner and conche, chocolate storage tank and chocolate delivery pump to achieve continuous production and improve production efficiency. It has automatic temperature control.

连续球磨机

Why you choose this continuous type chocolate ball mill?

If you want to get bigger capacity machine, you should buy this chocolate conche and chocolate ball mill with chocolate holding tank. The capacity can reach 250kg per hour, 500kg per hour, and 1000kg per hour.
