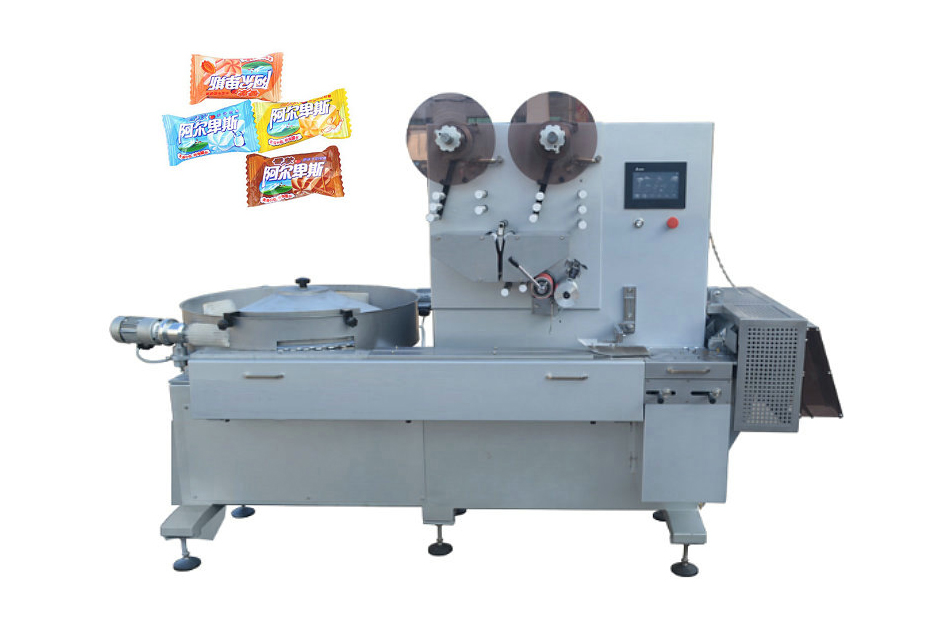

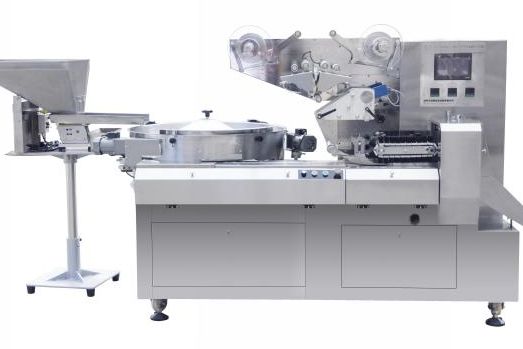

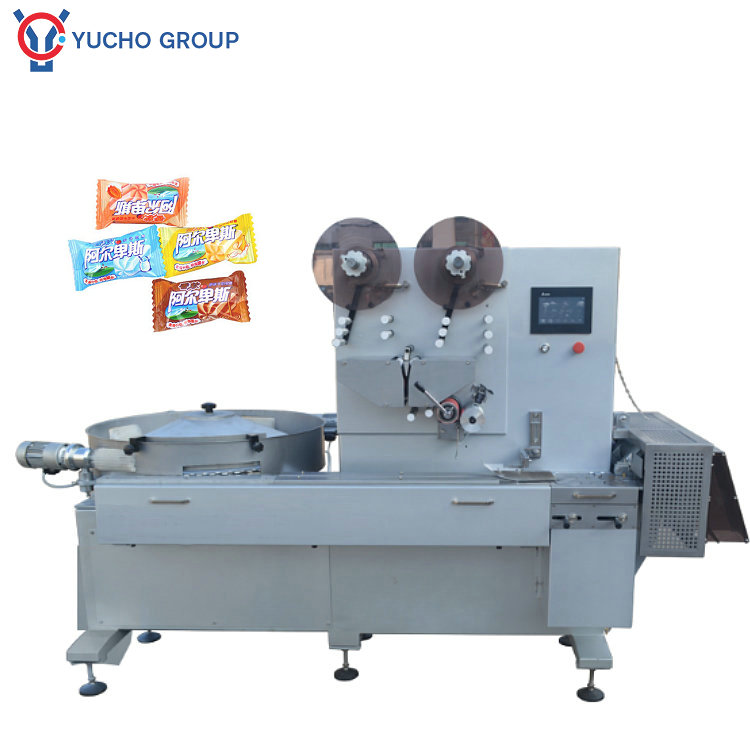

Hard candy toffee candy packing wrapping machine
We yucho produce candy packing machine, double twist packing machine, candy flow packing machine, vertical candy packing machine, is suitable for double/single twist wrapping of candies (with different kinds of shapes like rectangular, oval, circular, cylindrical, square), chocolate, beef, granule and so on, with single and double layers wrapping materials.
|
Item NO. |
YC-1000A |
|
Dimensions |
L3850mm×W1100mm×H1800mm |
|
Packing Speed |
50-1200 Bags/min (depending on products character and filling volume) |
|
Weight |
720KG |
|
Packing Bag Size |
L: 10-50mm W :10-30mm H : 4-25mm |
|
Voltage |
380V |
|
Filling volume |
≤300ml |
|
Application |
Suitable for square, spherical, round, cylindrical, button-shaped, oval high-speed pillow packaging,ect. |

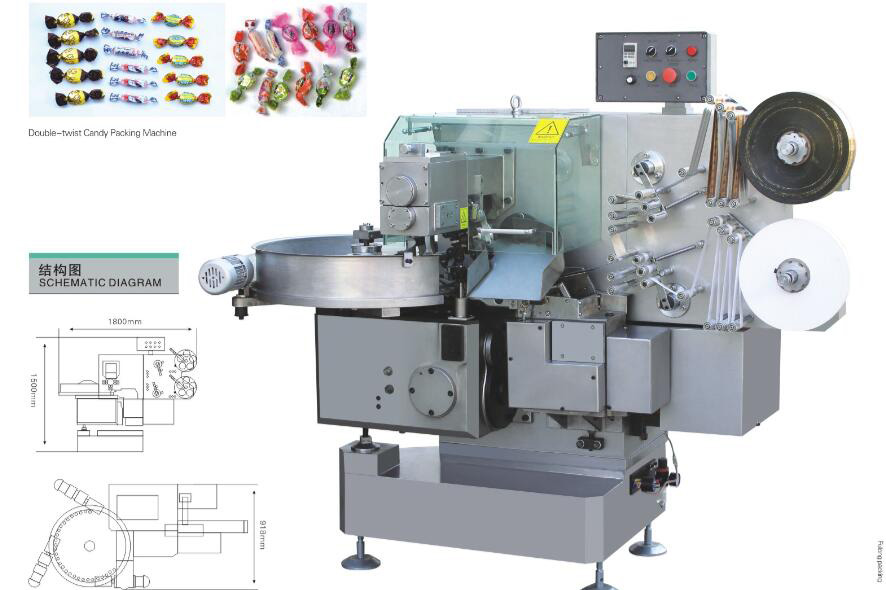

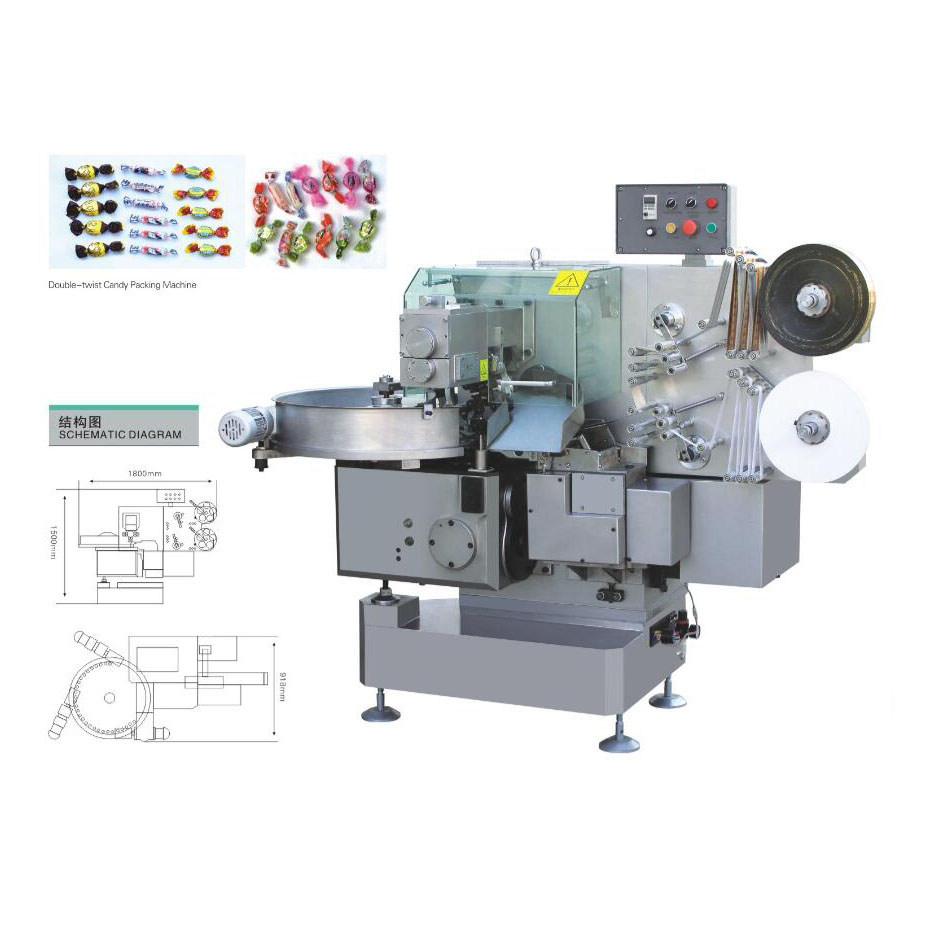

This machine with feeding disk for candies wrapped in double twist with one or two papers. The computer photo electric automatic detect, no empty packs, speed adjusting of frequency conversion.
1. It is easy to operate, high effect, manpower saving, pretty style, low noise, working smoothly, low fault occurrence and convenient to repair.
2. The main core components of this machine adopt imported new-type components. High-density cam indexing unit and cam gear can reach exact movement.
3. The AC motor of the frequency converter adopts stepless speed regulation control with high precision. It can save energy and extend life. It is adjustable when the machine is working.
4. Controlled by full auto built-in computer , inspected by international advanced photoelectric sensor, traced bi-directional with fast speed, 100% packing rate, no empty package.
5. It has the functions of overload protection, demoulding protection, and timely alarm when there is no film.
6. Food touch parts adopts stainless steel. It is good smoothness, easy to clean, which totally meets standard of food sanitation.
7. Single and double layers of wrapping paper are used.
8. It can be equipped with auto hopper.
| Packing speed | 200-550 pcs/min |
| Packing size | L: 11-32 mm; W: 11-25 mm; H: 5~20 mm |
| Film width | ≤ 120 mm |
| Dimension | 1800(L) × 950(W) × 1650(H) mm |
| Power | 380V, 50Hz, 3kw |
| Total weight | 1200kg |
1. Material conveying, weighing, filling, bag-making, date-printing, finished product outputting are all completed automatically.
2. High weighing precision and efficiency.
3. Packing efficiency will be high with vertical packing machine and easy to operate.
|
Technical Specification |
|
|
Model |
YC-BL10 |
|
Packing Speed |
30-70 Bags/Min |
|
System Output |
≥8.4 Ton/Day |
|
Packing Accuracy |
±0.1-1.5g |
|
Bag making mode |
Pillow bag, Gusset bag , Punching bag, Connecting bag |
|
Packing Material |
laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET. |
|
Range of measuring (g) |
5000 |
|
Thickness of film (mm) |
0.04-0.10 |
|
Power Parameter |
220V 50/60Hz 2.2KW |
|
Bag size(mm) |
VFFS 320:(W) 60-150 (L)50-200 VFFS 420:(W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620:(W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450 VFFS1050:(W) 200-500 (L)100-800 |

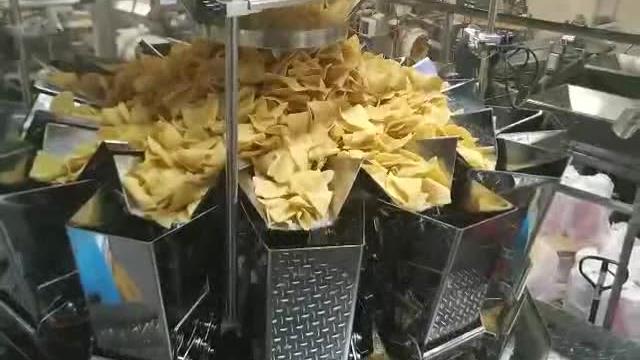

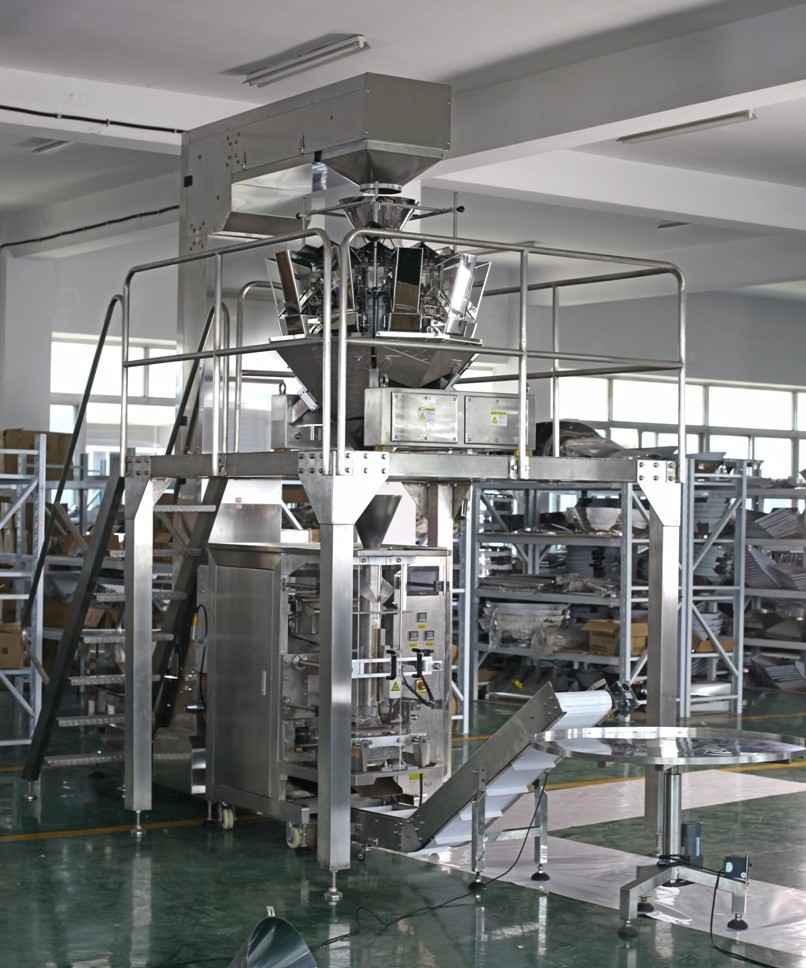

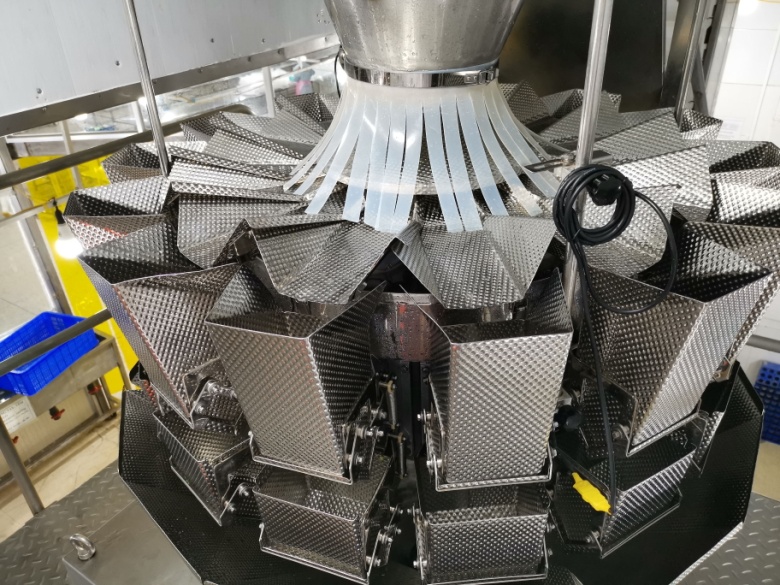

Machine Details
