Lowest Price for chocolate grinding machine - chocolate bean making machine – YUCHO GROUP Detail:

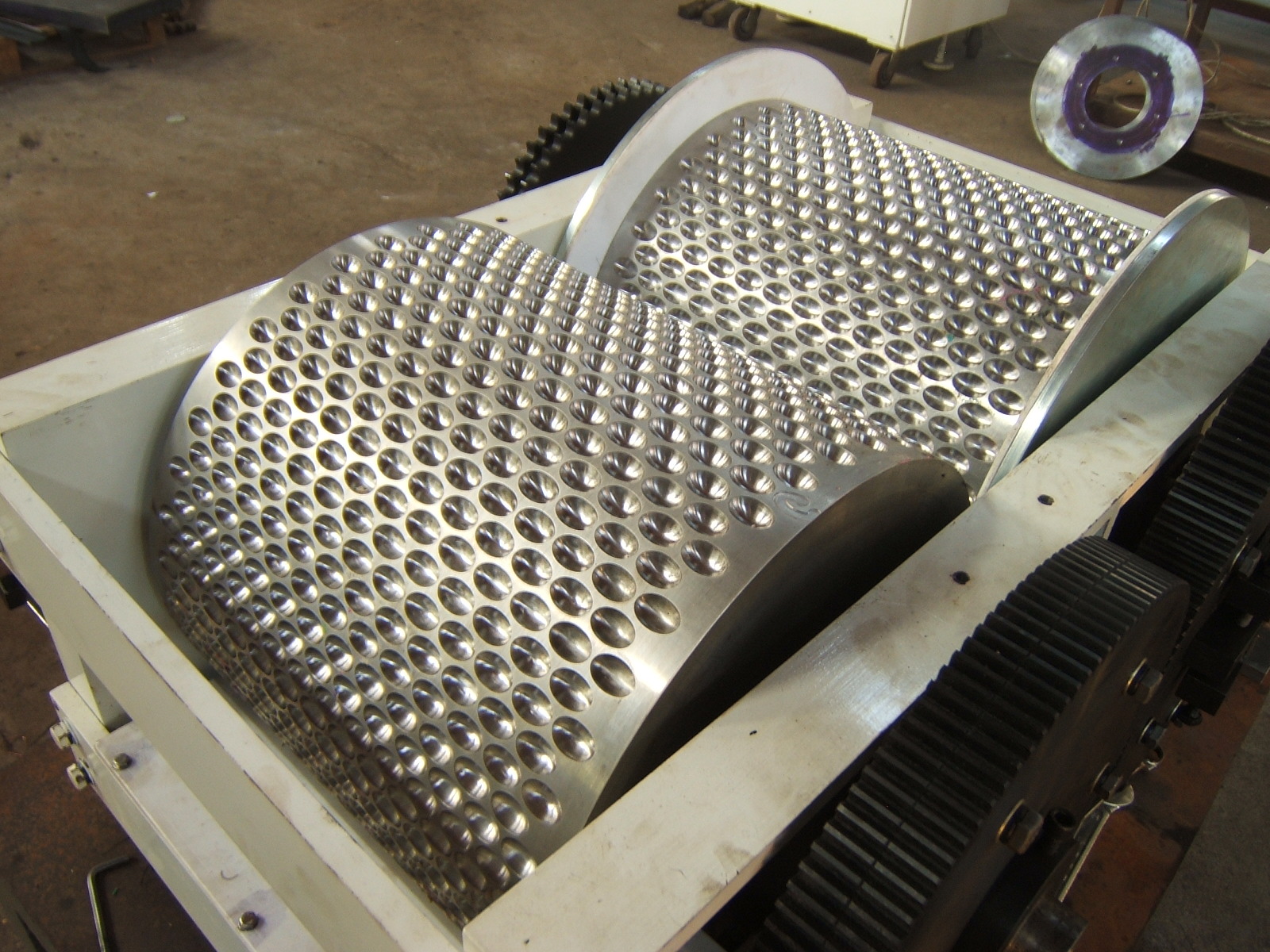

QCJ Chocolate Bean Making Machine is mainly used for cold rolling the pure chocolate paste into various shapes of chocolate beans, such as the spherical, the egg-shaped, the MM bean shaped chocolate beans and so on. This machine is equipped with cold roller, cooling system, cooling tunnel, beam rim separation unit.

The chocolate syrup is feed from the thermal tank though pump to the mould, the mould is working under the refrigeration
situation, lowest temperature can be regulated to -28 ℃ to -30℃, it makes the liquid syrup in the mould become solid in a moment.
Then transferred to cooler of 5 ℃ to -8℃ though conveyor for further definite form.
The finalized shape enter the roller screen barrel for remove the burr of core and automatically discharged.

In standard model of machine, there is one set of cold roller included. For optional function, there is space for two sets of cold rollers in the machine. We can manufacture two sets of cold rollers for two sizes and shapes of chocolate bean in the same one machine based on extra cost of second set of cold roller.

We have two models for chocolate bean forming machine, one model is TQCJ400 with roller size of 400mmx414mm, and another model is TQCJ600 with roller size of 600mmx414mm.

Model



Technical Parameters

QCJ400

QCJ600

Roller Length (mm)

400

600

Conveyor Belt Width (mm)

500

700

Roller Revolution Speed (round/min)

0.3-1.5

0.3-1.5

Layers of Cooling Tunnel

3

3

Production Capacity (kg/h)

100-150

150-225

Whole Machine Power (kW)

20

28

Outside Dimension (mm)

8620×1040×1850

8620×1250×1850

Name Dimension (L*W*H)mm Voltage(v) Power
(kw)
Weight
(kg)
Output
YC-200 YC-400
Batch roller 3400×700×1400 380 2 500 2T~5T/8h 5T~10T/8h
Rope sizer 1010×645×1200 380 0.75 300
Lollipop Forming machine 1115×900×1080 380 1.1 480
1685×960×1420 380 3 1300
Cooling sifter 3500×500×400 380 0.75 160

chocolate bean making machine (2)
chocolate bean making machine (1)

1


3


4


Product detail pictures:

Lowest Price for chocolate grinding machine - chocolate bean making machine – YUCHO GROUP detail pictures

Lowest Price for chocolate grinding machine - chocolate bean making machine – YUCHO GROUP detail pictures
